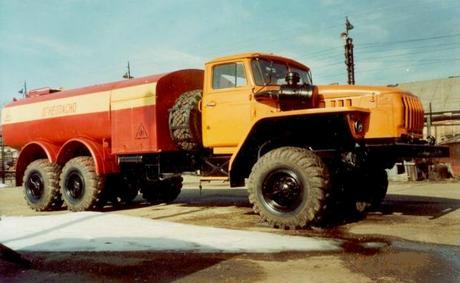

Aerodrome refueller АТЗ-10,5-4320
Autorefueller ATЗ-10,5-4320 is intended for mechanized fuelling of motor transport, sea and river crafts. Cistern of refueller could be calibrated and it can also serve as transport capacity measure.
Base chassis -УРАЛ-4320-1951-40 (Euro-2)
Refueller may execute the following operations depending on integration:
1. Fill the cistern with fuel with an outside pumping tools in lower (basic) and in upper (duplicating) ways.
2. Fill the cistern with fuel by its own pump from reservoirs and barrels.
3. Give out fuel for fuelling trough a filter and a meter.
4. Empty the cistern by an outside pomp in lower way.
5. Pour out the fuel from the cistern by gravity through a discharge piping.
6. Pump the fuel from one reservoir to another bypassing a tank.
7. Draw off the fuel from sleeves.
8. Give out the fuel from its own cistern, bypassing a filter and a meter.
9. Operate with a trailer consisting of a road-train.
Permissible mass of towing trailer:
- on the roads of 1 - 4 category 11 500 kg;
- on the roads of 5 category 7 000 kg.Refueller ATЗ-10.5-4320 is intended for mechanized fuelling of aircrafts by aviation gasoline or fuel for jet engines on aerodromes of all types, and also for A-gas transportation.
Base chassis - УРАЛ-4320-1951-40 (Euro-2)
Refueller may execute the following operations depending on integration:
1. Fill the cistern with fuel with an outside pumping tools in lower (basic) and in upper (duplicating) ways, both taking into account and not taking the quantity of the fuel.
2. Fill the cistern with fuel by its own pump from reservoirs and barrels.
3. Give out fuel for fuelling trough a filter and a meter.
4. Empty the cistern by an outside pump in lower way.
5. Pour out the fuel from the cistern by gravity through a discharge piping.
6. Pump the fuel from one reservoir to another bypassing a tank.
7. Draw off the fuel from sleeves.
8. Take the fuel from aircraft's tank taking into account its quantity.
9. Mix the fuel in the tank.
10. Give out the fuel from its own cistern, bypassing a filter and a meter.
11. Operate with a trailer consisting of a road-train.
Permissible mass of towing trailer:
- on the roads of 1 - 4 category 11 500 kg;
- on the roads of 5 category 7 000 kg.
.
|
|
Specifications:
| Aerodrom refueller АТЗ-10,5 -4320 |
| Operating capacity |
10500 l |
| Material |
stainless steel 12X18H10T |
| Tank section |
'Suitcase' |
| Filling machine |
Included |
| Total output at pump rotation frequency 2000 rpm and filter- spacer uncontaminated (unpolluted) |
900 l/min |
| Total output through a ferrule of closed fuelling |
650 l/min |
| Filter-spacer |
FVGk-60 |
| ТCutoff rating of fuel not more than |
5мcм |
| Content of the free-water after the filter-spacer at watering till it not more than 0,05% mass not more than |
0,0015% |
| Pump |
SCL-20-24G |
| Pump drive |
From power delivery box |
| Self-suction height |
4,5 m |
| Distribution sleeve Du 50 |
2х15 m |
| Suction sleeve Du 65 |
3х3 (2х4,5) m |
| Liquid counter |
PPV -100-1.6 |
| Scale factor |
10 l |
| The limits of the available fault of the counter |
0,25% или 0,50% |
| Stop valve |
ball-valves or hinged gate (rotary gate, swing gate |
| length of fully kitted refueller not more than |
9,15 m |
| width of fully kitted refueller not more than |
2,5 m |
| height without cargo and crew not more |
3,0 m |
| Fully loaded mass without fuel in the tank not more |
11200 kg |
| Fully loaded mass with fuel in the tank, driver and passenger not more |
20625 kg |
| Maintenance engineers (maintenance staff, operating staff) |
Driver-operator |
|
|
