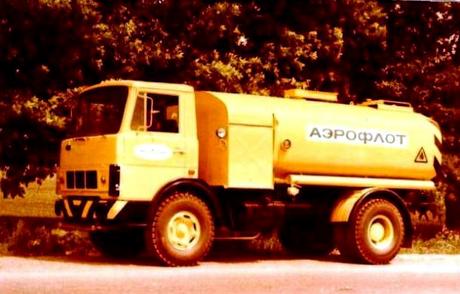

Aerodrome refueller АТЗ-9,5-5337
Aerodrome refueller АТЗ-9,5-5337 is intended for mechanized fuelling of aircrafts by aviation gasoline or fuel for jet engines, and also for motor transport, sea and river crafts. Cistern of refueller could be calibrated and it can also serve as transport capacity measure.
Base chassis - MAЗ-533702 (Euro-2)
Refueller may execute the following operations depending on integration:
1. Fill the cistern with fuel with an outside pumping tools in lower (basic) and in upper (duplicating) ways, both taking into account and not taking the quantity of the fuel.
2. Fill the cistern with fuel by its own pump from reservoirs and barrels.
3. Give out fuel for fuelling trough a filter and a meter.
4. Empty the cistern by an outside pomp in lower way.
5. Pour out the fuel from the cistern by gravity through a discharge piping.
6. Pump the fuel from one reservoir to another bypassing a tank.
7. Draw off the fuel from sleeves.
8. Take the fuel from aircraft's tank taking into account its quantity.
9. Mix the fuel in the tank.
10. Give out the fuel from its own cistern, bypassing a filter and a meter.
11. Operate with a trailer as a road-train. Fully loaded mass of a road-train is 26 000 kg.
br>
|
|
Specifications:
| Aerodrome refueller АТЗ-9,5-5337 |
| Operating capacity |
9500 l |
| Material stainless steel 12X18H10T Material |
stainless steel 12X18H10T |
| Tank section |
'Suitcase' |
| Filling machine |
Included |
| Total output at pump rotation frequency 2000 rpm and filter- spacer unpolluted |
900 l/min |
| -Total output through a ferrule of closed fuelling |
650 l/min |
| Filter-spacer |
FVGk-60 |
| Cutoff rating of fuel not more than |
5 mcm |
| Content of the free-water after the filter-spacer at watering till it not more than 0,05% mass not more than |
0,0015% |
| Pump |
SCL-20-24G |
| Pump drive |
From power delivery box |
| Self-suction height |
4,5 m |
| Distribution sleeve Du 50 |
2х15m |
| Suction sleeve Du 65 |
3х3(2х4,5) m |
| Liquid counter |
PPV -100-1.6 |
| Scale factor |
10 l |
| The limits of the available fault of the counte |
0,25% or 0,50% |
| Stop valve |
ball-valves or hinged gate (rotary gate, swing gate |
| - length not more |
6,85 m |
| - width not more |
2,5 m |
| - height without cargo and crew not more |
3,0 m |
| Fully loaded mass without fuel in the tank |
8500 kg |
| Fully loaded with fuel in the tank, driver and passenger |
16000 kg |
| Maintenance engineers (maintenance staff, operating staff) |
Driver-operator |
|
|
