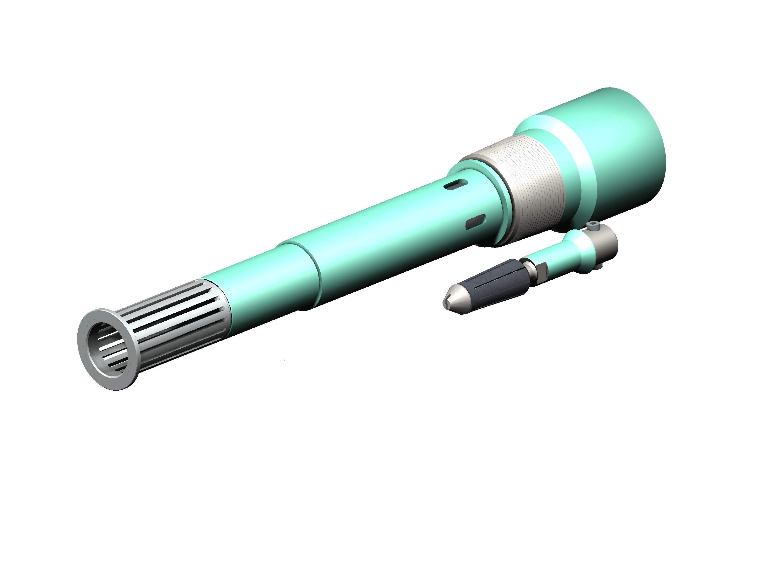

| 'КО- 3' CUTOFF VALVE |
| Conventional diameter of pumps |
without limitation |
| Necessary diameter of the central through passage channel in joint support of the pump not less |
34 mm |
| Length of a working course |
112 mm |
| Admissible pressure differential |
25 MPa |
| Admissible working temperature |
140 degree C |
| External diameter no more |
89 mm |
| Length |
807+/-5mm |
| Admissible volume of solid particles under cathing block |
without limitation |
| Threaded connection-box threat of plain-end tubing GOST 633-80 with diameter |
73 mm |
| Weight |
26,4 kg |
