Production / Pipeline valves / Type ШПТ 150, ШПТ 250 ROTARY GATE
Type ШПТ 150, ШПТ 250 ROTARY GATE

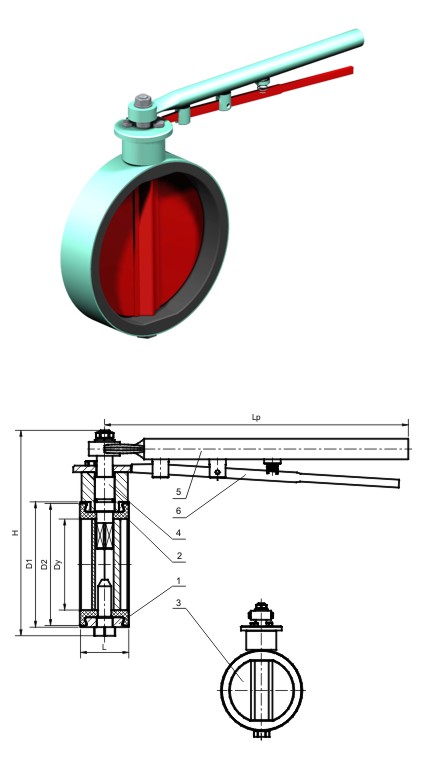

ШПТ 150, ШПТ 250 Rotary gate
is installed at pipelines as well as shutoff and control valve to control supply and to adjust fluid flow.
- Admissible operating pressure - 0,3 MPa
- Admissible temperature - 3730K
- Medium - water, oil
|
Specifications:
ШПТ-150 |
Ду |
150 mm |
L |
75 mm |
D1 |
190 mm |
D2 |
186 mm |
Lp |
460 mm |
H |
320 mm |
Weight |
10,3 kg |
ШПТ-250 |
Ду |
250 mm |
L |
75 mm |
D1 |
297 mm |
D2 |
292 mm |
Lp |
550 mm |
H |
467 mm |
Weight |
16,3 kg |
|
|
