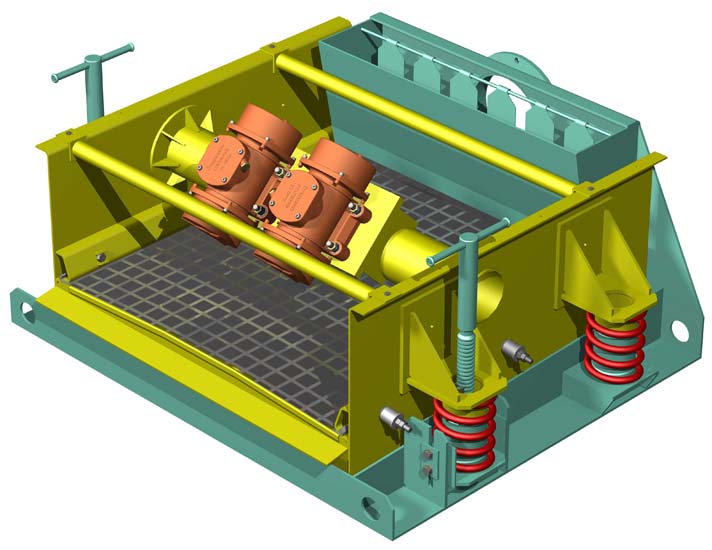

| Shale shaker ЛВС5-МТ |
| The maximal throughputa t drilling on water with a grid with the sizes of cells on light 0,16х0,16 mm on 0,16х0,16 mm screen |
20 l/s |
| Screen dimensions |
mm |
| -width |
1140+/-3,3 mm |
| -length |
1212+/-3,3 mm |
| Effective area of the screen assemblies |
1,3 m2 |
| Electric motor specifications: |
W |
| -power |
525 W |
| -frequency of rotation |
1500 RPM |
| Maximal amplitude of fluctuations of vibrating frame |
4 mm |
| Kind of fluctuations |
linear |
| Frequency of fluctuations of a frame |
24,5+/-0,5 Гц |
| Corner of an inclination of a frame, hailstones |
+5+/-6....-3+/6 |
| Level of a sound on a workplace in the established mode |
70 decibel |
| Maximum weight |
760 kg |
| Overall dimensions |
mm |
| -length |
1410 mm |
| -width |
1650 mm |
| -height |
800 mm |
| Time between failures of the vibrator, not less |
5000 hour |
| Average service life of shale shaker |
10 years |
|
