TYPE УТО-352Т INSTALLATION FOR THIN CLEANING DRILLING MUD

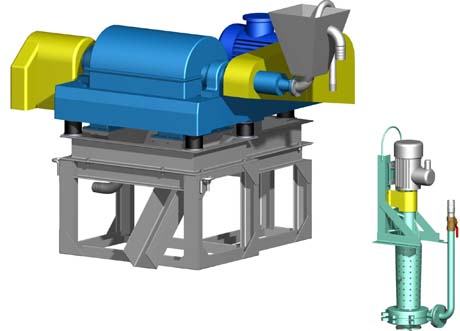

УТО-352Т INSTALLATION

is intended for thin cleaning not weighted drilling mud and regeneration of a weighting compound in the weighted solutions at drilling oil and gas wells.It is applied in structure of circulating systems of drilling rigs.

Installation includes:

1.Centrifuge ОГШ 352 - 1 piece
2.Tray-1 piece
3.Bunker -1piece
4.Funnel -1 piece
5.Submersible pump НП-12,5 - 1 piece
6.Basis -1 piece
7.Wud agitator ПБР-Т-1,1 - 1 piece
8.Connecting sleeves-1 piece
9.Apron -1 piece
10.Electric drave control panel -1 piece

Specifications:

Type УТО-352Т Installation
Length	2596 mm
Width	1966 mm
Height	1820 mm
Height ( without taking into account the basis)	1160 mm
Throughput	4 l/s
The minimal size of removable particles	0,005-0,01 mm
Frequency of rotation of a rotor of a centrifuge, maximal	1800 RPM
The established capacity electric motors of centrifuges	18,5KW
The established capacity electric motors of mud agitator ПБР-Т-1,1	4 KW
The established capacity electric motors of submersible pump НП-12,5	2,2 KW
Weight	2355 kg
