TYPE СГС-1М2 DRYER

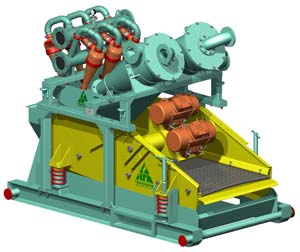

СГС-1М2 Dryer

is intended for cleaning of drilling mud from the drilling cuttings particles when drilling oil and gas wells.It is applied in structure of circulation systems of drilling rigs of all classes.


Specifications:


СГС-1М2
Throughput 45 l/s
The lsmallest size of removed particles mm
- with help of a shale shaker ЛВС-1М 0,16mm
- with help of a desander ГЦ-360 0,08 mm
- with help of a desilter ИГТ-1С 0,02 mm
The established capacity of the equipment 3 KW
Weight no more 3000 kg
- Length 3000 mm
-Width 1756 mm
-Height 2250 mm
