Type ИГ-Т-45М Desilter

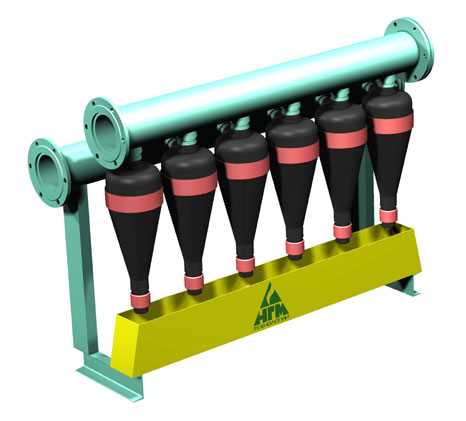

ИГ-Т-45М Desilter

is intended for cleaning not weighted drilling mud from drilling cutting particles during drilling oil and gas wells. It is a part of circulation systems for drilling rigs of all types.Desilter employs six 150mm cyclones. Cyclones are made from polyurethane. This material provides high durability.

Specifications:


ИГ-Т-45М
Capacity, m3/sec 0,045
Desilter inside diameter, mm 150
Working pressure before hydrocyclone, MPa 0,3
Regulation range of a sand orifice diameter, mm 20-12
Сyclone numbers, pieces 6
Overall dimensions, mm:
- length
- width
- height
1730
520
1200
Maximum weight, kg 200
The smallest size of particles in density up to 2600 kg/m3, removed up to 95% at work on a drilling mud, mm 0,02-0,03
