Type ЛВС-1М, ЛВС-2М, ЛВС-3М Shale shaker with linear vibration

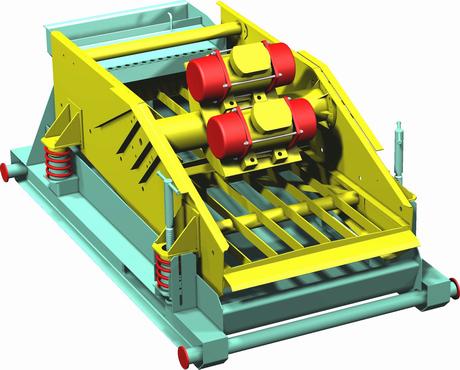

ЛВС-1М Shale shaker with linear vibration
is designed for cleaning of the drilling mud in the process of the well drilling and overhaul.
|
|
Specifications:
| ЛВС-1М |
| Maximum throughput on a grid with the sizes of cells 0,16х0,16 mm at drilling on water, l/sec |
45 |
| Screen dimensions, width |
1140+/-3,3 mm |
| Screen dimensions, height |
1212+/-3,3mm |
| Working surface, m2 |
2,6 |
Electric Motor specifications:
power, kW
maximum rotating speed, RPM |
1,5
1500 |
| Maximum vibration amplitude , mm |
2.0 |
| Vibration type |
linear |
| Maximum sound level on the working place, decibel |
80 |
| Vibration frame frequency, Гц |
24,5+/-0,5 |
| Angle of frame relative to gorizont, degree |
+5+/-6'...-3+/-6' |
| Fixed resource of shaker to the over-haul, hr |
10000 |
Overall dimensions , mm:
- length
- width
- height |
3000
1756
1450 |
| Weight without spare parts no more, kg |
1650 |
| ЛВС-2М |
| Maximum throughput on a grid with the sizes of cells 0,16х0,16 mm at drilling on water, l/sec |
35 |
| Screen dimensions, width |
900+/-2,8 mm |
| Screen dimensions, height |
1212+/-3,3mm |
| Minimum effective area of the screen assemblies, m2 |
2,0 |
Electric Motor specifications:
power, kW
maximum rotating speed, RPM |
1,5
1500 |
| Maximum vibration amplitude , mm |
2.0 |
| Vibration type |
linear |
| Maximum sound level on the working place, decibel |
80 |
| Vibration frame frequency, Гц |
24,5+/-0,5 |
| Angle of frame relative to gorizont, degree |
+5+/-6'...-3+/-6' |
| Fixed resource of shaker to the over-haul, hr |
10000 |
Overall dimensions , mm:
- length
- width
- height |
3000
1546
1450 |
| Weight without spare parts no more, kg |
1900 |
| ЛВС-3М |
| Maximum throughput on a grid with the sizes of cells 0,16х0,16 mm at drilling on water, l/sec |
40 |
| Screen dimensions, width |
1140+/-3,3mm |
| Screen dimensions, height |
980+/-2,8mm |
| Minimum effective area of the screen assemblies, m2 |
2,1 |
Electric Motor specifications:
power, kW
maximum rotating speed, RPM |
1.5
1500 |
| Vibration type |
linear |
| Maximum sound level on the working place, decibel |
80 |
| Vibration frame frequency, Гц |
24,5+0,5 |
| Angle of frame relative to gorizont, degree |
+5+6':-3+6' |
| Fixed resource of shaker to the over-haul, hr |
10000 |
Overall dimensions , mm:
- length
- width
- height |
2400
1756
1450 |
| Weight without spare parts no more, kg |
1500 |
| Maximum vibration amplitude , mm |
2.3 |
|
|
