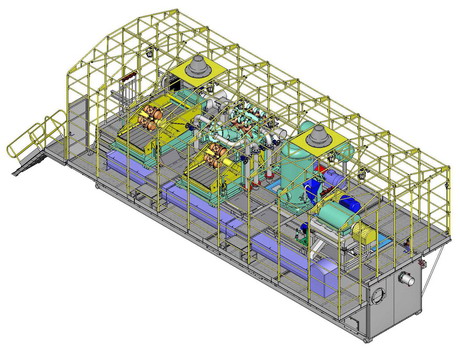

СЦ-37K MUD CLEANING UNIT

Is designed for cleaning and its transportation from the wellhead to intermediate units or acceptance units intake when drilling oil and gas wells. The block is applied in structure of circulating systems of drilling rigs of any class.

UNIT INCLUDES:
1. Tank V=40 m3 -1 piece
2. Linear shale shaker ЛВС-1М -1 piece
3. Dryer СГС -1М -1 piece
- linear shale shaker ЛВС -1М -1 piece
- desander ГЦ-360 -2 pieces
- desilter ИГТ-1С -1 piece
4. Centrifuge ОГШ -50 -1 piece
5. Degasser 'Каскад-40.02' -1 piece
6. Screw conveyer КВ-Т 300 -1 piece
7. *Steam-heater -1 piece
8. Cover frame -1 piece
9.* Cover ( shelter) -1 piece
* Conditionally it is not shown
