СЦ-28Т MUD CLEANING UNIT

Is designed for cleaning and its transportation from the wellhead to intermediate units or acceptance units intake when drilling oil and gas wells. The block is applied in structure of circulating systems of drilling rigs of any class.

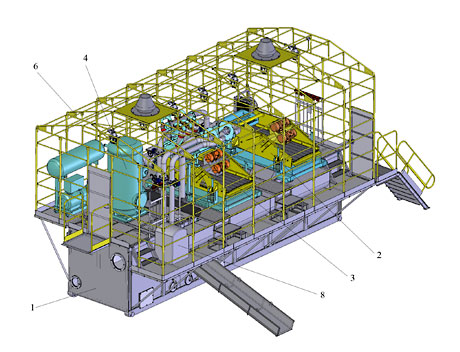

UNIT INCLUDES:
1. Tank V=20 m3 -1 piece
2. Linear shale shaker ЛВС-1М -1 piece
3. Dryer СГС -1МТ2 -1 piece
- linear shale shaker ЛВС -1М -1 piece
- desander ГЦ-360 -2 pieces
- desilter ИГТ-1С -1 piece
4. Degasser 'Каскад-40.02' -1 piece
5.* Steam-heater -1 piece
6. Cover frame -1 piece
7.* Cover ( shelter) -1 piece
8. Screw conveyer КВ-Т 300 -1 piece
9. *Sludge pump 6Ш8-2 -2 pieces
* Conditionally it is not shown
