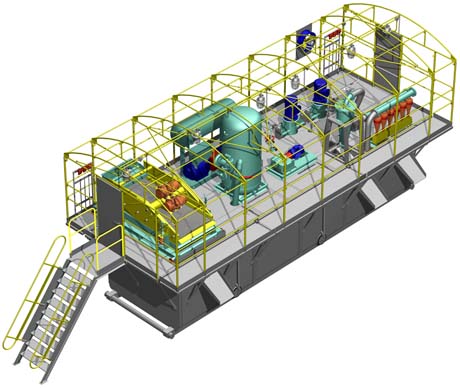

ЦСКР-100П Mud cleaning unit

is intended for cleaning and transportation of a drilling mud a wellhead up to an input intermediate units or reception units at drilling oil and gas wells.It is applied in structure of circulating systems of drilling rigs of any class



Unite includes:

1. Tank V=40 m3 -1piece
2. Linear shale shaker ЛВС-1М -1piece
3. Degasser "Каскад-40.02" -1piece
4. Desilter ИГ-Т-45М -1piece
5. Desander ГЦ-360 -1piece
6. Vertical sludge pump ВШН-150 -2pieces
7. Mud agitator ПБР-Т 7,5 -1piece
8. Hydraulic agitator 4УПГ -1piece
9. Fan -1piece
10.Sceleton of shelter-1piece
11.Connecting sleeves-1piece
12.Pipeline manifold with regulation and distributive armature-1piece
